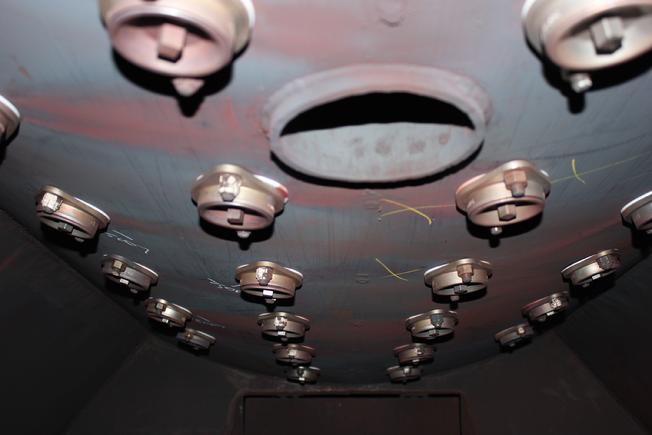

Note leakage from the Spray Valves using standard flat
teflon gaskets on a curved spray valve support plate.
PEMCO's unique convex (curved) teflon gasket will
eliminate this problem and seal the spray valve to the plate.
If the above gasket leakage is located near or close to the
vent pipe (as indicated in photo), it could cause water to
discharge from the deaerating heater vent connections.
WHAT'S NEW

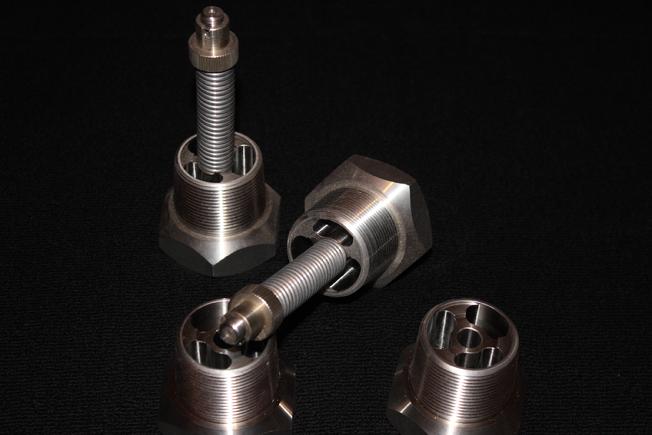

316 Stainless Steel Body Spray Valves for Worthington Deaerating Heaters
316 Stainless Steel Poppet Valve
Now available- 316 Stainless Steel Body 1-1/2" Spray Valve for Worthington Deaerating Heaters. Valve includes - 316 Stainless Steel Body, 316 Stainless Steel Stem, 17/7 Stainless Spring, 316 Stainless Steel Spring Retainer and Cotter Pin. Available for immediate delivery.
